Introduction/What is TO

Electric steam boilers are clean, efficient, and fully automatic heating equipment that generates saturated or superheated steam by heating water via electric heating elements. Unlike traditional fuel-fired boilers, they produce zero emissions (no flue gas, dust, or harmful exhaust) and operate with low noise, making them ideal for eco-friendly industrial and commercial applications.

Widely used in food processing, pharmaceuticals, textiles, chemical engineering, and heating systems, these boilers not only simplify compliance with environmental regulations but also cut operational costs (via precise energy control). They are a core equipment choice for modern low-carbon production and facility management.

theory

Electric steam boilers operate on the principle of resistive heating: electric current passes through high-efficiency heating elements (typically 304 stainless steel or high-temperature alloy), converting electrical energy directly into heat energy to boil water and produce steam.

Their integrated control system (often PLC-based) automatically regulates water supply, heating power, and pressure:

When steam pressure drops below the set value, the system activates heating elements to maintain output;
When water levels are low, the feed pump triggers automatically to prevent dry burning;
Overpressure protection valves and temperature sensors ensure safe, stable operation.

The compact design (available in vertical/horizontal/combination types) optimizes space usage, while modular heating elements enable flexible capacity adjustment—supporting steam outputs from 5kg/h to 6000kg/h to match diverse load demands.

APPLICATION & ADVANTAGES

Its core function is to deliver on-demand, consistent-pressure steam for industrial processes (sterilization, drying, distillation), commercial heating, or auxiliary power systems. Compared to fuel boilers, electric steam boilers offer key benefits:

Zero Emissions: No combustion byproducts, aligning with strict environmental standards;
High Efficiency: 98% thermal efficiency (no heat loss from flue gas);
Low Maintenance: Fewer moving parts than fuel boilers, reducing downtime;
Precise Control: Stepless power adjustment to match variable steam demands, cutting energy waste.

This system is widely used in scenarios requiring clean, reliable steam—including food & beverage production, laboratory testing, and small-to-large industrial plants—making it a cornerstone of modern, sustainable steam supply solutions.

RUIDING SMART MANUFACTURING, MEETING SAFETY STANDARDS.

Certification-Exempt Electric Steam Boiler

Click Here

Slide Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Click Here

Slide Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Click Here

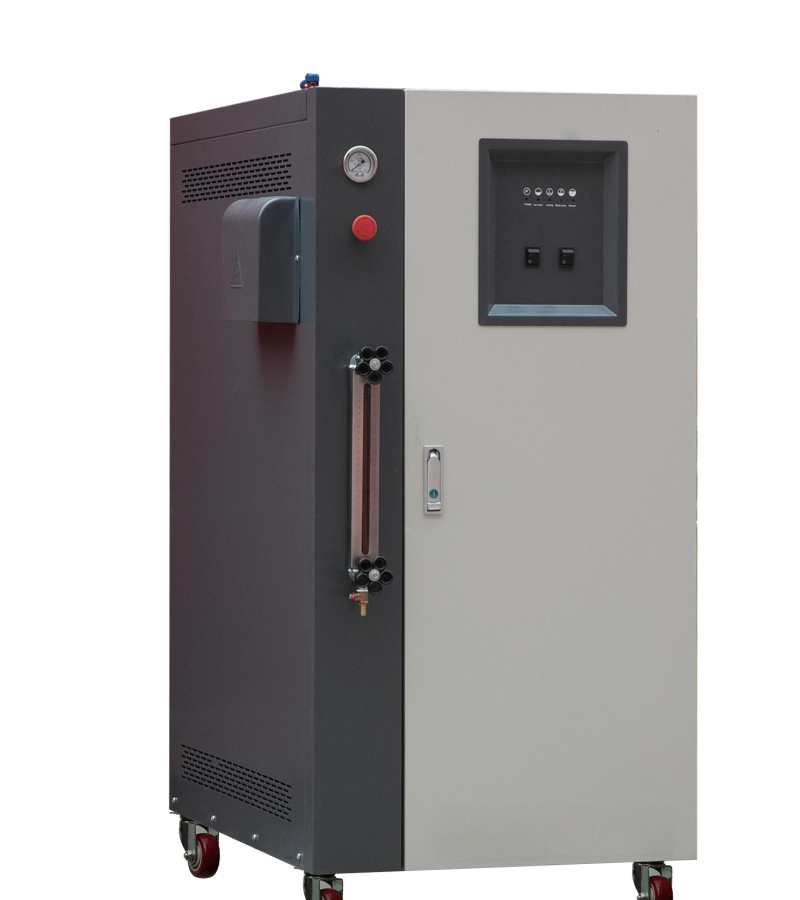

9KW-45KW Electric Steam Boiler

✅ 98% Thermal Efficiency

✅ 0.7Mpa Working Pressure

✅ Compact & Mobile

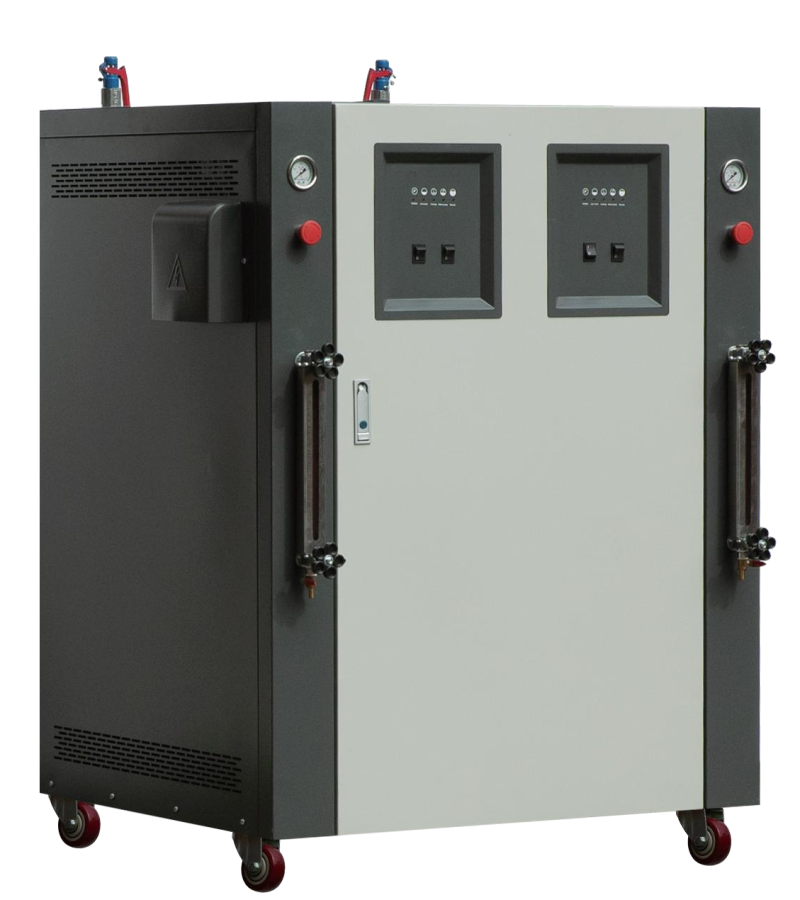

18KW-72KW Electric Steam Boiler

✅ Stainless Steel Furnace

✅ Overheat Protection

✅ Easy Installation

90KW-144KW Electric Steam Boiler

✅ PLC Control System

✅ X-Ray Detection for Furnace

✅ Stable Steam Output

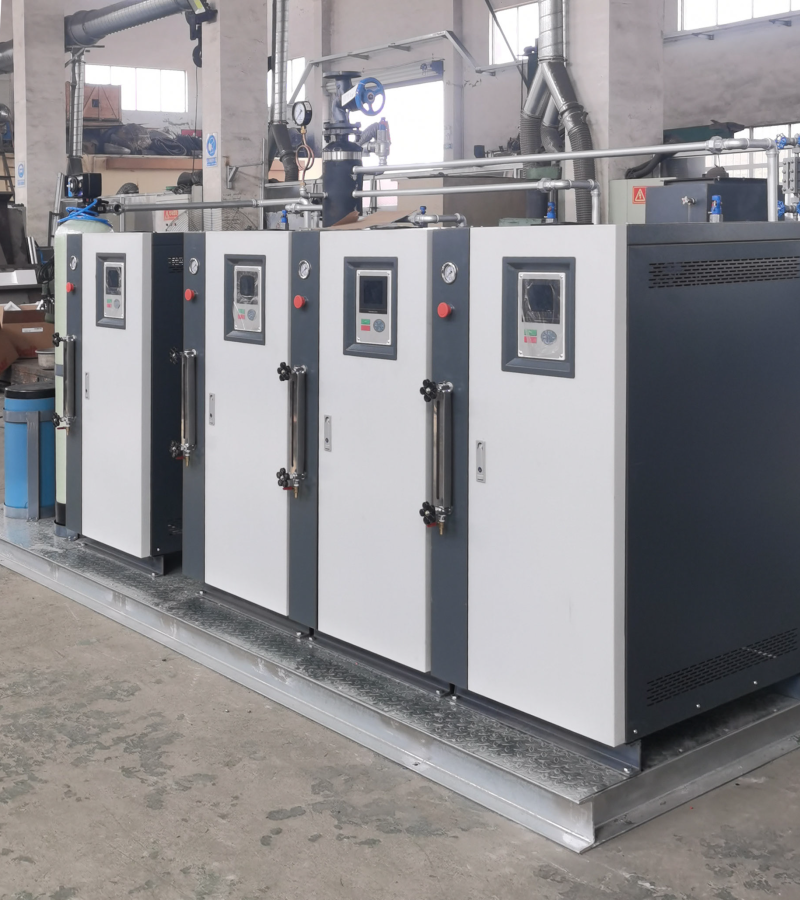

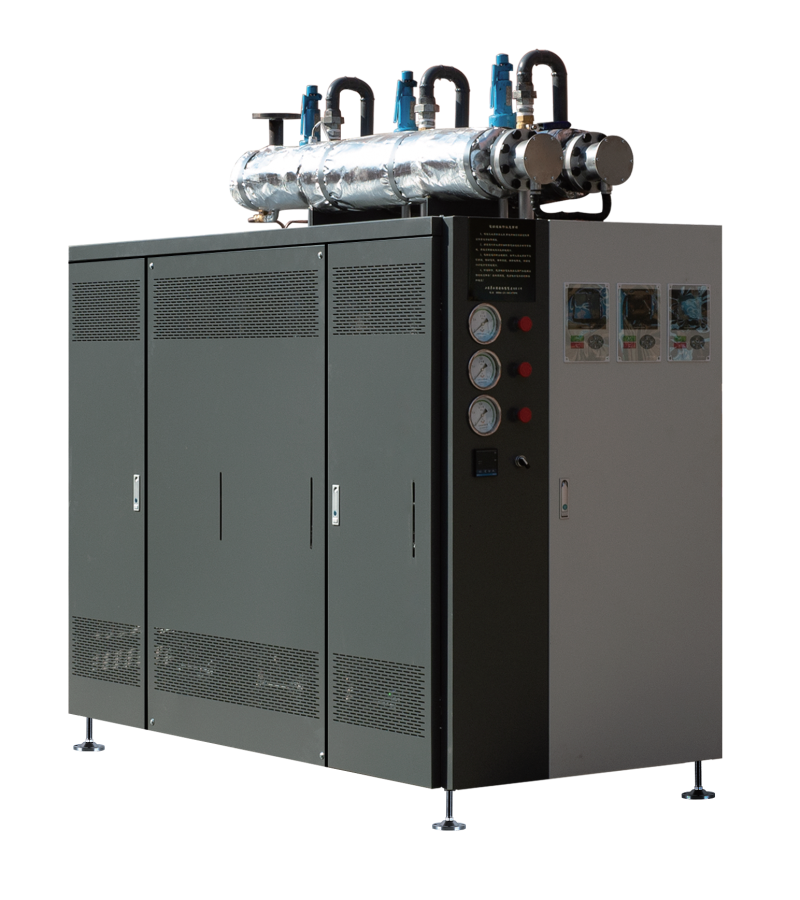

180KW-360KW Combination Electric Steam Boiler

✅ Multi-Unit Integration

✅ Large Steam Capacity（500kg/h）

✅ Safety Valve Protection

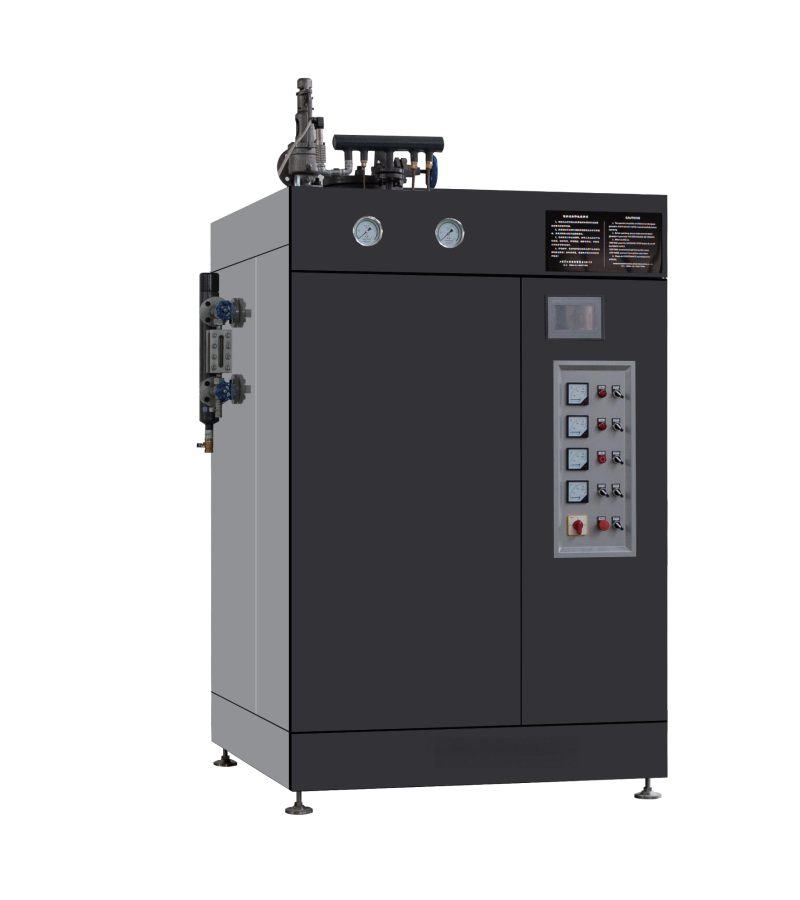

Vertical Electric Steam Boiler

90KW-360KW Certification-Exempt Vertical Electric Steam Boiler

Core Advantages

Premium Electrical Components
Adopts Siemens imported electrical parts (contactors, thermal relays, etc.), with multi-layer protection (over-temperature, low water level, over-pressure) for safe & stable operation.
Intelligent Water Level Control
Equipped with water level electrode tube assembly, realizing automatic monitoring & adjustment of water level—avoids dry burning and ensures continuous steam supply.
High Efficiency & Energy Saving
98% thermal efficiency, 0.7-0.8Mpa working pressure, and saturated steam up to 174℃—meets high-demand industrial processes (sterilization, drying, etc.).

Click Here

Technical Parameters

Click Here

Technical Parameters

Click Here

Technical Parameters

Click Here

Large Horizontal Electric Steam Boiler

720KW-4200KW High-Capacity Horizontal Electric Steam Boiler

Core Advantages

Intelligent PLC Control
Equipped with digital PLC controller (with microprocessor), realizing automatic heating, pressure adjustment, and real-time monitoring of internal furnace status; supports flexible combination of heating units for customized power output.

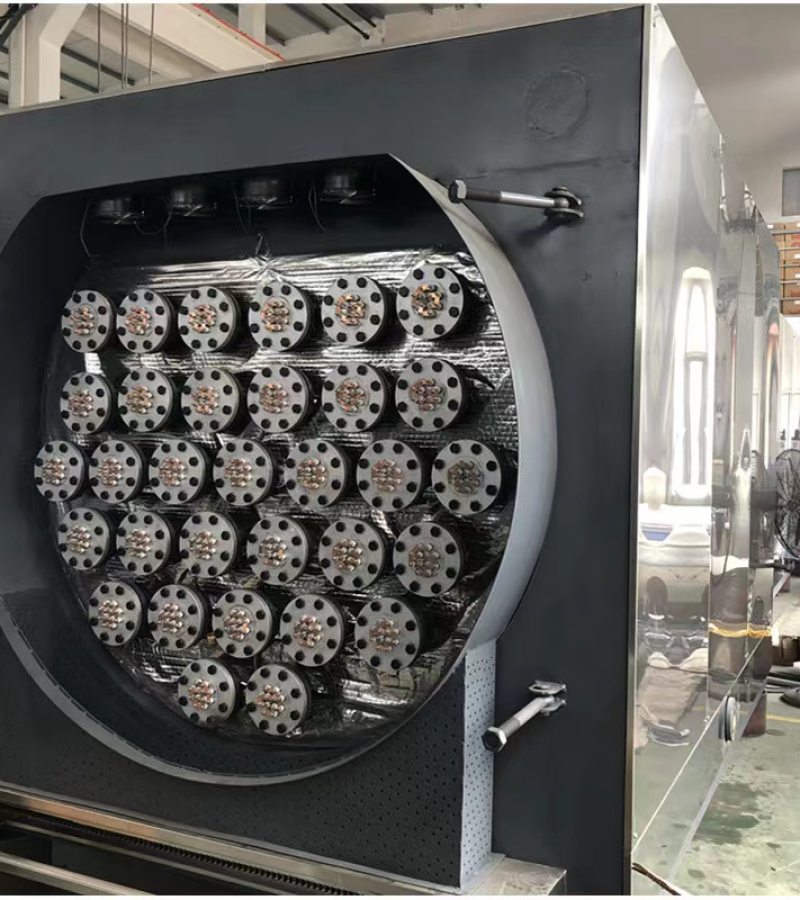

Efficient Horizontal Furnace
Adopts centralized horizontal electric heating tube design: heating elements are modular and adjustable, allowing dynamic power input based on load—reducing energy waste while balancing the operating time of each heating tube.
High-Power & High-Pressure Performance
1.25Mpa working pressure, 98% thermal efficiency, and maximum steam capacity up to 6000kg/h—meets the high-demand steam needs of large industrial scenarios.

Small Exemption-from-Inspection Vertical Electric Steam Boiler

3.5KW-7.5KW Compact & Mobile Electric Steam Boiler

Portable Steam Solution for Small-Scale Scenarios

Core Advantages

Ultra-Simple Operation
Patented 15-second quick-heat design; all functions (start, stop, adjustment) are integrated into one button—no professional training required, easy for any operator.
Hassle-Free Installation
Strictly tested before delivery; users only need to connect the water inlet/outlet pipes, turn on the power, and press the start button to enter fully automatic operation.
Flexible & Mobile
Dual voltage options (220V/380V) + built-in casters; compact size (600×385×655mm) fits small spaces, easy to move between workstations.
